How to Choose the Right EPS Foam Density for Your Project

Expanded polystyrene, commonly known as EPS, is used for packaging, insulation, displays, props, lettering, models and bespoke fabricated shapes. Although these products may be made from the same general material, they do not all require the same density.

Foam density can influence rigidity, compressive strength, weight, surface texture, durability and how the material behaves during cutting and finishing.

Choosing the highest available density is not always necessary. A decorative shape used once at an indoor event may have different requirements from protective packaging, a reusable exhibition feature or a component exposed to pressure.

This EPS foam density guide explains what density means, how it can affect a finished product and which project details to discuss with a foam fabricator before ordering.

What Does EPS Foam Density Mean?

Density describes how much material is contained within a given volume. For EPS, it is commonly expressed in kilograms per cubic metre.

Two blocks can have identical external dimensions but different densities. The denser block contains more expanded polystyrene material within the same volume.

A change in density can affect:

Density is only one part of the specification. Thickness, shape, span, support, intended use and manufacturing method can be equally important.

This is why an EPS foam density guide should help you ask the right questions rather than present one grade as suitable for every project.

Is Density the Same as Thickness?

No. Density and thickness describe different characteristics.

Density refers to how much material exists within a certain volume. Thickness refers to the physical depth of a sheet, block or finished component.

A thick piece of low-density EPS may still be lightweight. A thinner piece of higher-density EPS may feel firmer and resist pressure more effectively.

Neither measurement should be selected in isolation. A fabricator needs to understand both the required dimensions and the way the product will be used.

For example, increasing the thickness of a display panel may improve its rigidity without requiring a particularly high density. A narrow or detailed shape may benefit more from denser material because there is less foam around vulnerable edges.

Does Higher Density Mean Stronger EPS?

Higher-density EPS will generally provide greater rigidity and resistance to compression than a lower-density version of the same material. However, this does not mean it will be suitable for every load-bearing or structural application.

The finished shape, thickness, support and direction of force will affect performance. Products intended for construction, insulation or technical use may also need to meet specific standards and declared performance requirements.

Do not assume that high density polystyrene blocks can safely support a particular load simply because they feel firmer. Ask the supplier to confirm whether the proposed grade is suitable for the application.

For decorative, packaging and creative projects, strength should also be considered in practical terms. Will the product be handled frequently? Does it include narrow projections? Must it protect a heavy object? Will it travel between venues?

The answers can help the fabricator recommend an appropriate density.

Low-Density EPS Foam

Lower-density EPS is lightweight and can be suitable for products that will not experience substantial pressure or repeated handling.

Potential applications include:

Its low weight can make large forms easier to transport and install. This is particularly useful when visual scale is more important than resistance to handling.

Potential limitations may include:

A lower density should not be selected purely to reduce cost. The material still needs to perform throughout fabrication, delivery, installation and use.

Medium-Density EPS Foam

A medium-density grade may provide a useful balance between low weight, rigidity and fabrication performance.

Depending on the exact specification, it may suit:

Medium-density material can provide firmer edges and improved resistance to handling without introducing the additional weight or cost of a higher-density product.

This part of the EPS foam density guide is intentionally broad because density descriptions are not always consistent between suppliers. Terms such as low, medium and high density should be supported by the actual material grade and intended performance.

Ask the fabricator to identify the proposed density within the quotation.

High-Density EPS Foam

High-density EPS contains more material within the same volume. It is generally firmer and may provide better resistance to pressure, impact and repeated handling.

Potential uses include:

High-density material may also produce a tighter-looking surface, although the final appearance depends on the cutting process, material grade and applied finish.

There are trade-offs. High-density EPS may cost more and weigh more than a lower-density alternative. For a large decorative object that will be viewed from a distance and touched rarely, the additional density may provide little practical value.

Use this EPS foam density guide to identify whether increased rigidity is genuinely required rather than treating maximum density as the default.

Choosing Density for Protective Packaging

Packaging must protect a product from impacts, vibration, movement and compression during handling or transportation.

The correct foam density depends on:

Higher density does not automatically provide better protection. Packaging foam must manage forces appropriately. Material that is too soft may compress excessively, while an unsuitable firmer material may not provide the cushioning required by the product.

The shape of the insert is also important. Accurate contact points, clearances and wall thicknesses can be as important as density.

Provide the fabricator with the product’s dimensions and weight. For specialist or high-value equipment, testing may be required before a final production run is approved.

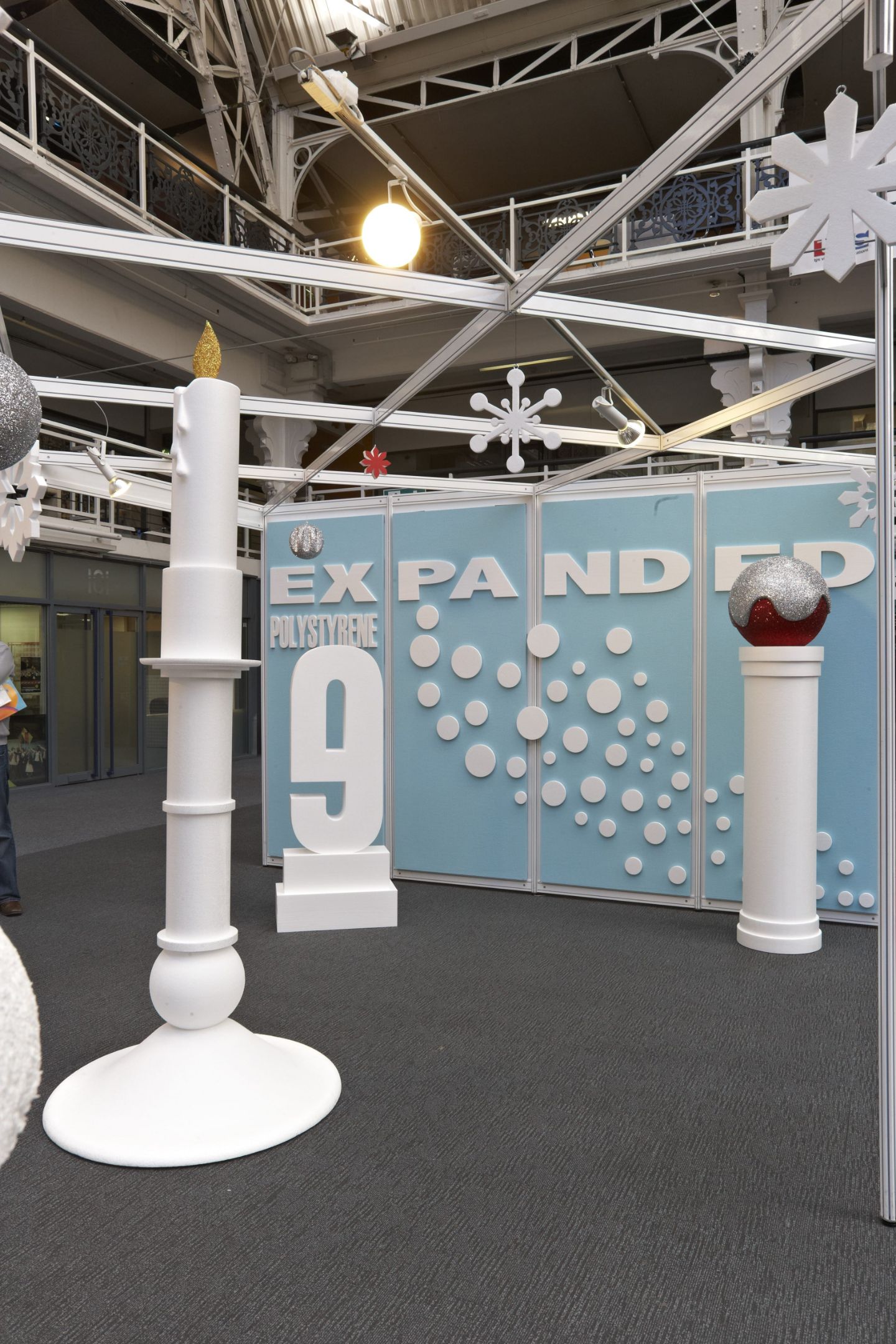

Choosing Density for Displays and Props

Large displays and props often benefit from EPS because the material allows substantial shapes to remain lightweight.

The density needed depends on how the item will be presented and handled.

A suspended decorative shape may prioritise minimum weight. A freestanding logo accessible to visitors may require firmer material, additional depth or external support. A prop that will travel between venues may need greater resistance to repeated packing and handling.

When selecting EPS foam blocks for a display, consider:

Fast Shield produces bespoke foam shapes for events, exhibitions, retail displays and creative projects.

Choosing Density for Letters and Logos

Lettering can contain narrow sections, sharp corners and unsupported areas. These details can be more vulnerable than the main body of the letter.

The right density depends on:

A thick, bold letter may perform well at a moderate density. A narrow letter with fine details may benefit from denser EPS or a modified design.

The fabricator should review the complete word or logo rather than specifying every character separately. Some letters are naturally more stable than others.

Fast Shield manufactures EPS foam blocks and sheets for lettering, sculptures, spheres and other fabricated products.

Choosing Density for Sculptures and Bespoke Shapes

Complex sculptures may combine large solid areas with narrow features. The design must therefore consider both fabrication and handling.

An experienced provider of EPS foam fabrication in London can assess whether one density is suitable for the complete shape or whether the design should be adjusted.

Questions include:

Density may influence how the material responds to cutting and surface finishing, but the production method also affects the final result.

How Does Density Affect Surface Finish?

Raw EPS has a recognisable beaded surface. Higher-density material may have a tighter appearance because more material is contained within the same volume.

However, density alone does not determine finish quality.

The final appearance may also depend on:

A display viewed from across an exhibition hall may not require the same surface treatment as a model examined at close range.

Explain the desired appearance to the fabricator rather than selecting a density based only on the assumption that it will create a smooth surface.

How Does Density Affect Weight?

EPS is lightweight, but denser grades contain more material and will therefore weigh more for the same dimensions.

For small components, this difference may be minor. For large blocks, sculptures or installations, the additional weight can affect:

If minimum weight is a priority, tell the fabricator. The design may be able to use a lower density, hollow sections, separate components or another production approach.

How Does Density Affect Cost?

A denser EPS product generally uses more raw material. This can increase the material cost.

The total project price may also include:

Density should therefore be considered as part of the complete specification, not as the only factor affecting price.

A suitable lower-density material can be more cost-effective when the application does not need additional strength. Conversely, selecting a material that is too light may lead to damage, remanufacturing or a shorter useful life.

The aim is to choose the lowest density that still performs appropriately for the project.

Questions to Ask Your EPS Fabricator

Use the following checklist with this EPS foam density guide:

  1. Which density do you recommend for this application?
  2. What grade will be supplied?
  3. Why is that density suitable?
  4. Will it resist the expected handling or pressure?
  5. Is it appropriate for the required cutting detail?
  6. How will it affect the surface finish?
  7. Could a lower density achieve the same result?
  8. Would a different thickness improve rigidity?
  9. Is a prototype or sample recommended?
  10. Will the product be supplied in one piece or sections?
  11. Are there technical standards relevant to the application?
  12. How will the density affect cost and delivery?

The supplier should be able to explain the recommendation in relation to your project rather than simply describing one grade as better.

Information to Provide Before Requesting a Quote

To receive a useful recommendation, provide:

If the foam must fit another object, provide accurate drawings or a physical sample where practical.

The more clearly the application is explained, the easier it is to specify the correct material.

Consider Waste and End-of-Life Planning

Using a suitable density can support material efficiency. Over-specifying a product may use more material than the project requires, while under-specifying it may shorten its useful life.

Businesses should also consider whether the finished item can be reused and how production offcuts will be managed.

Fast Shield states that it sends 100% of its own polystyrene waste to recycling depots. More information is available on the company’s EPS recycling page.

Clean EPS is technically recyclable through suitable specialist routes, although practical collection options depend on location, contamination and available facilities.

Choose the Right EPS Foam Density

The correct density depends on what the finished product needs to do.

Lower-density EPS can be suitable for lightweight decorative shapes and short-term displays. Medium-density material can offer a balance of weight, rigidity and fabrication performance. Higher-density EPS may be appropriate for detailed, reusable or pressure-resistant components.

No category should be selected without considering dimensions, thickness, shape, support and handling.

Use this EPS foam density guide as a starting point, then ask an experienced fabricator to recommend the grade for your specific application.

Fast Shield supplies and fabricates EPS for packaging, models, displays, letters, sculptures and other bespoke projects. You can view previous fabrication projects or explore the company’s wider range of foam products.

To discuss your required dimensions, density, finish and delivery date, contact Fast Shield for advice and a quotation.
